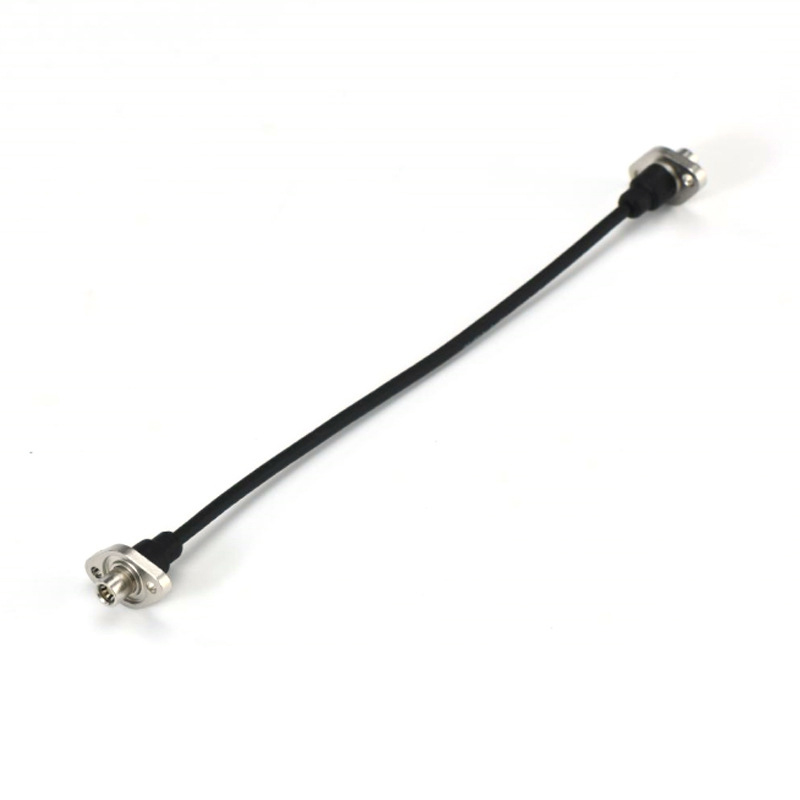

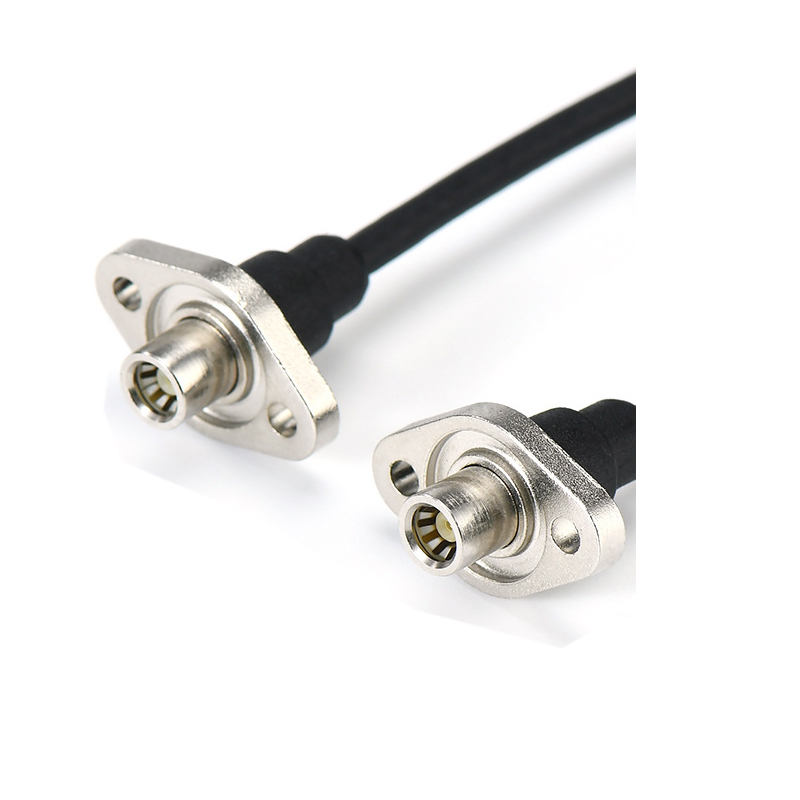

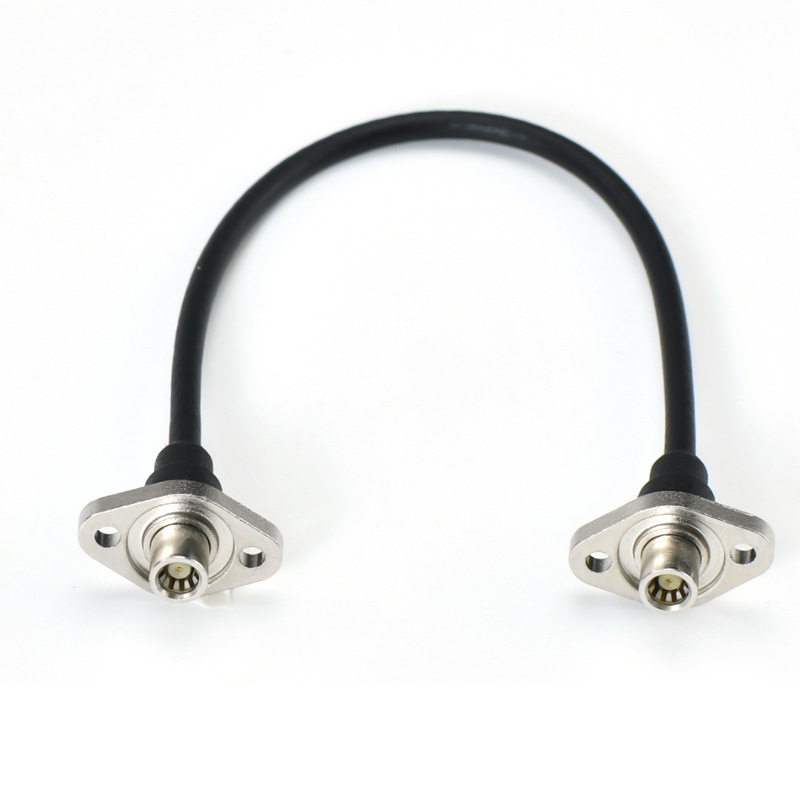

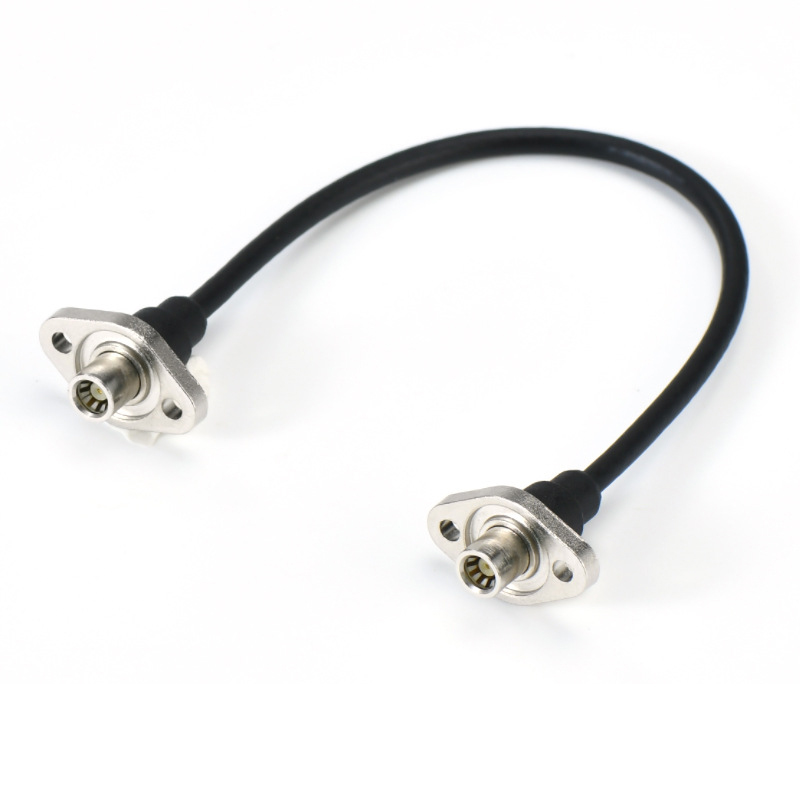

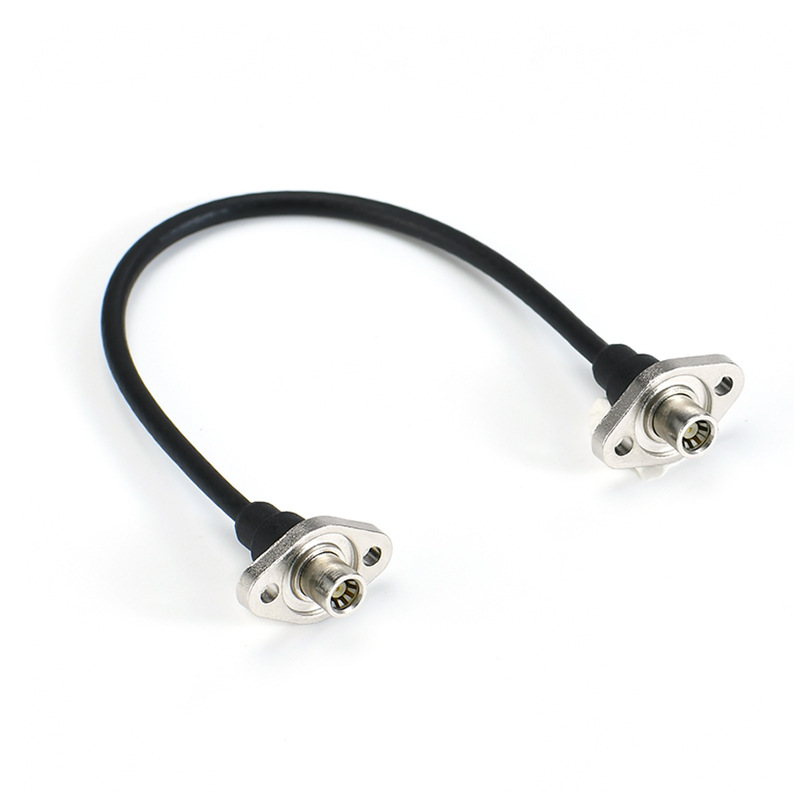

Processing of SMB electronic rearview mirror 360 panoramic rearview mirror reverse radar connection line for automotive RF wiring harness



Electrical performance
Rated current: 50 Ω
Rated voltage: 60V DC
Working voltage: 335VOLTS RMS
Insulation resistance: 1000M Ω MIN
Voltage withstand: 500VOLTS RMS
Current: IA MAX
Internal conductor contact resistance: 5M Ω MAX
External conductor contact resistance: 5M Ω MAX
Standing wave ratio/echo loss: 0-3GHz ≤ 1.5, 3-6GHz ≤ 1.58
Mechanical performance
Durability: 50 Cycles Min
Insertion force: 30N Max
Pullout force: 2N Min
Snap retention force: 100N Min
Anti misinsertion efficiency: 40N Min
Environmental characteristics
Application temperature: -40 ° C to+105 ° C
Thermal shock: -40 ° C to+105C, 100Cycles
Vibration and mechanical impact: Random, 5-10ms, 35Gs, 1/2sine
Temperature, temperature cycle: 40Cycles, 8Hrs/Cycles
Waterproof: ISO20653IP69K; SUBMERION Over 120 HOURS
RoHS: Compliant
